Treasure Chest Puzzle Box

Summary

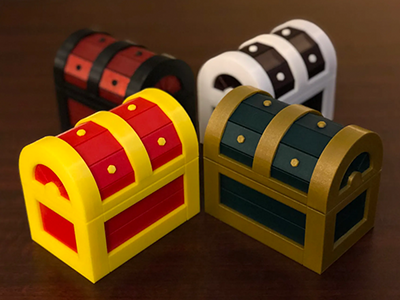

A puzzle box shaped like a treasure chest. Reveal three triangles to open the cheat!

Hardware

Standard Size

• 2.5mm smooth metal rod - 47mm long
• 2.5mm smooth metal rod - 94.5mm long
• 3x3mm cylinder magnets (quantity: 12)

Giant Size

• 5mm diameter dowel rod - 185mm long
• 5mm diameter dowel rod - 92mm long
• 6x3mm cylinder magnets (quantity: 12)

Printing

• Print the Weighted Axel with a high infill percentage to improve its use as a weight.
• All parts can be printed without supports.
• Tall pieces (Slats, Flip Lid, Flip Lid Cap) may require a brim for bed adhesion.

Assembly

Design

Giant Variation

Yes! This model is available for commercial use!

Creative Commons Attribution (CC BY 4.0)

This license grants you permission to download, distribute, alter, print, and even sell copies of this design.

This license requires you to provide attribution so that others can find my work.

This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.

Recommended Attribution Text

"Treasure Chest Puzzle Box" (https://3dprinty.xyz/project/1) is designed by 3D Printy (https://3dprinty.xyz) and shared under a Creative Commons Attribution (CC BY 4.0) license (https://creativecommons.org/licenses/by/4.0/).
