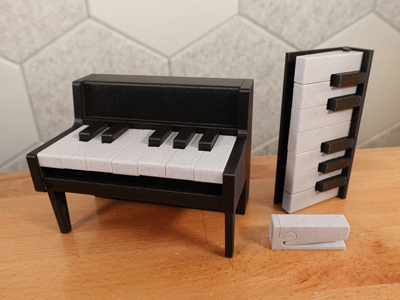

A 3D printed clicky fidget with a piano theme.
Layout Options
- Test Print - A single key print useful as a mini fidget or to check your print settings
- Minimal - 12 keys on a minimal base
- Standing - 12 keys on a upright style base
Magnet Options
- 24 6x3mm cylinder magnets (2 per key)
- 48 6x3mm cylinder magnets (4 per key)
Printing
- All parts except for the D, G, and A keys can be printed without supports.
- Tested with 0.2 and 0.3 layer heights
Assembly
- Add magnets to the back of each key. For easier assembly, make sure all keys use magnets in the same orientation. Glue if loose.
- Optional: Add magnets to the bottom of each key.
- Add magnets to the back of the base. These magnets should be oriented to pull the key. Glue if loose.
- Optional: If you added magnets to the bottom of each key, install repelling magnets in the base.
- Slide keys on the base.
- Test all keys for a good click and proper alignment.
- If building the standing piano, attach both sides using 2 stand locks per side. Glue if loose.
