Summary

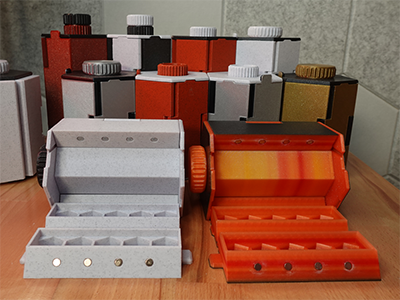

A rollup dice box that organizes up to 30 dice in six customizable trays.
Customization
Sizes
- Small - 5 dice per bin
- Large - 7 dice per bin
Bin Options
- Plain - No dividers. This can be used with crafting foam to make your own tray layouts.
- Hexagonal - Holds up to five dice.
- Circle - Holds up to five dice.
- Square - Holds up to five dice.
Other Options
- Use “Short Tab” start bins if you want the container to be able to sit flat while vertical. Warning: this does make the box slightly more difficult to open.
- Use “Mix Tab” start bins if you want the container to be able to sit flat while vertical but still has a longer tab on top.
- Print one or more external trays, which you can use for dice management outside the box. Up to 3 empty trays can stack inside a plain bin.
Printing
- Most standard PLA formulations are fine, but avoid brittle silk and matte PLAs.
- Print one start bin, one end bin, and four middle bins.
- All parts can be printed without supports.
- Add a brim if you experience curling issues on tight corners.
- Swap the filament color mid-print for a dual color effect.
Assembly
- Glue eight 6x3mm magnets into the start and end bins. Make sure the magnets are oriented so that they pull the bins together.
- Use a scrap of unprinted 1.75mm filament to connect all six bins together.
- Align the top of the core with the bottom - make sure that the two ends are correctly rotated.
- Firmly press the core top into the core bottom. These parts are a very tight fit and may require a lot of force to close. To avoid damaging either part, apply pressure only near the center of the top and bottom.
