Rollup Dice Box (Tower Core)

Summary

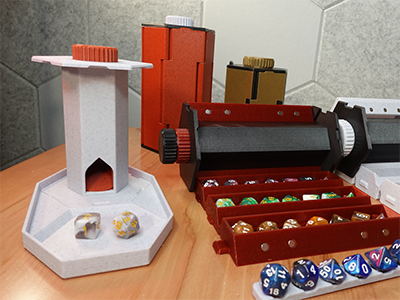

An alternate core for the Rollup Dice Box that turns the core into a dice tower.

Options

Size

• Small
• Large

Magnets

Add 6x3mm magnets - Magnets help keep the internal core of the tower in alignment.

Base

Add the base to keep dice from rolling away.

Threaded

A threaded version of the core that supports a screw-on cap.

Printing

• Most standard PLA formulations are fine, but avoid brittle silk and matte PLAs.
• All parts can be printed without supports.

Assembly

• (optional) Glue 6x3mm magnets into the bottom tower frame and tower core. Make sure magnets are aligned so that the core is pulled into the frame.
• Slide the tower core into the bottom tower frame.
• Firmly press the frame top into the frame bottom. These parts are a very tight fit and may require a lot of force to close. To avoid damaging either part, apply pressure only near the center of the top and bottom frames.
